MIL-DTL-83454A

NOTES:

1. Refer to tables I through IV for dimensions and tolerances.

2. Stud size markings shall be as follows:

1 = .138-32 UNJC-3A

2 = .164-32 UNJC-3A

3 = .190-32 UNJF-3A

4 = .250-28 UNJF-3A

3. Grip depth markings shall be as follows: -1 = 0.062 nominal grip

-2 = 0.125 nominal grip

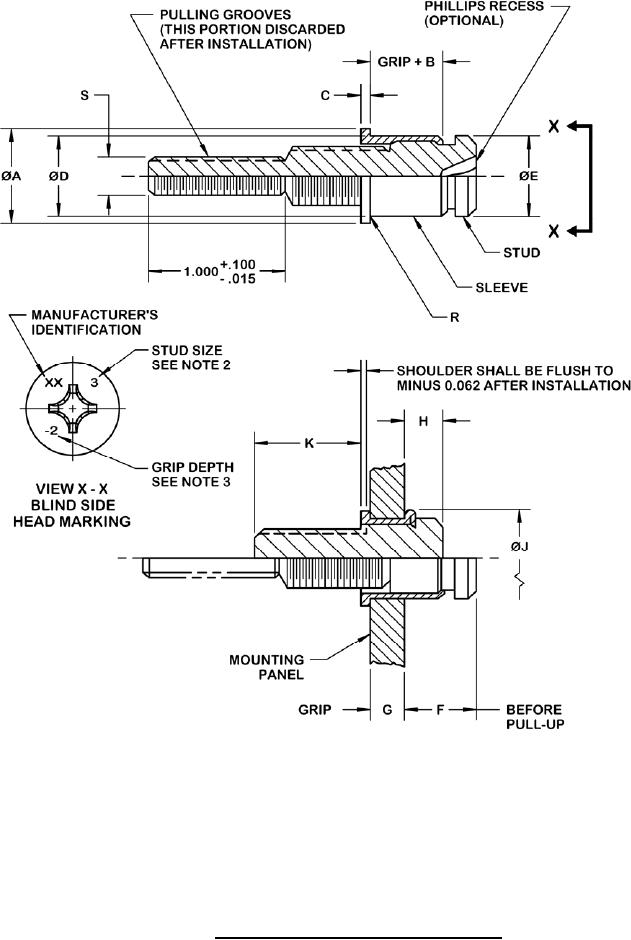

FIGURE 1. Stud terminal dimensions and markings.
