MIL-DTL-24558B
NOTES:
1. All dimensions are in inches.
2. Material shall be brass, 0.062 thick.
3. Identification plate markings shall be as shown. Markings shall be depressed, embossed or etched in
the metal.
4. Information plate shall be blank. It will be marked at the time of installation by the installing activity.

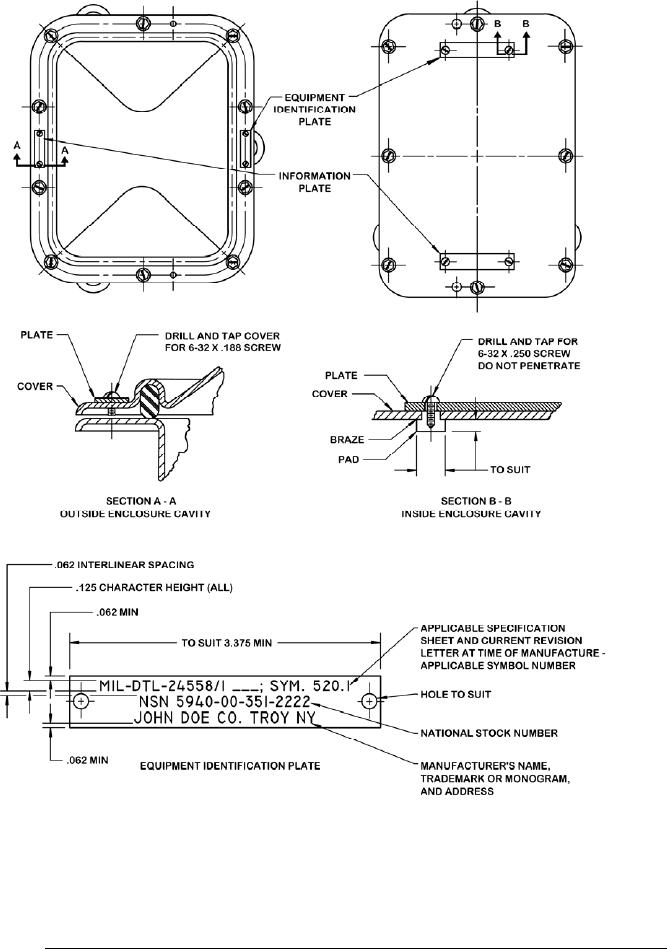

FIGURE 6. Typical equipment identification and information plates design and installation details.
