MIL-DTL-24558-22 Terminal Boxes, Connection, Submersible \(15-Foot\), 500 Volts, Single- Phase, Symbol No. 415 - Two 75 Mcm Cables, Symbol No. 415.1 - Two 100 Mcm Cables, Symbol No. 415.2 - Two 125 Mcm Cables, Symbol No. 415.3 - Two 150 Mcm Cables And Symbol No. 415.4 - Two 200 Mcm Cables

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


MIL-DTL-24558/22B
TABLE FOR DRILLING TERMINAL CAP AND PAD
Symbol numbers
Cable size MCM
ØX drill
Y
415
75
3/8
.125
415.1
100
7/16
.188
415.2
125
15/32
.188
415.3
150
17/32
.188
415.4
200
9/16
.188

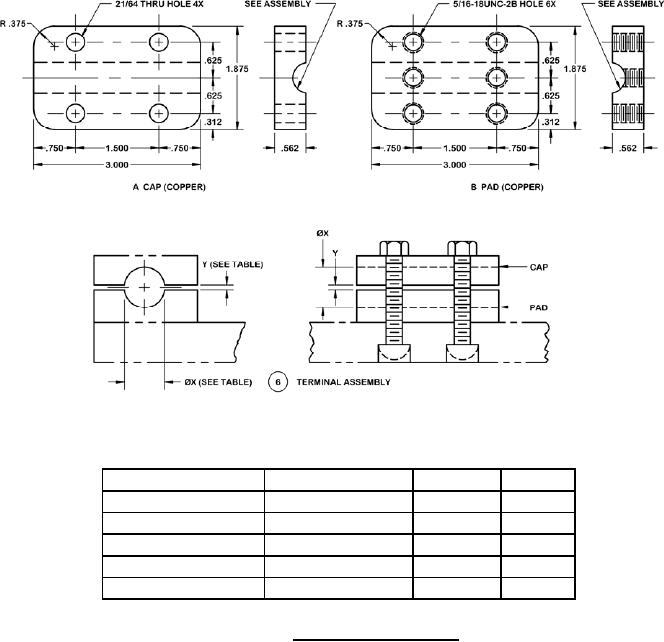

FIGURE 5. Terminal lug assembly.
8
