A-A-52425B
|
Part Identification No. (PIN) |
Former MS part No. |
A. Diameter small end |
Terminal designator |
Type |
|
|
Max. |
Min. |
||||
|
A52425-1 |
MS75004-1 |
0.695 |
0.690 |
Positive |
I |
|
A52425-2 |
MS75004-2 |
0.633 |
0.628 |
Negative |
II |
NOTES:
1. Dimensions are in inches. Unless otherwise specified, tolerances are ±0.02.
2. Clearance for bolt holes shall be suitable for bolts in drawing.

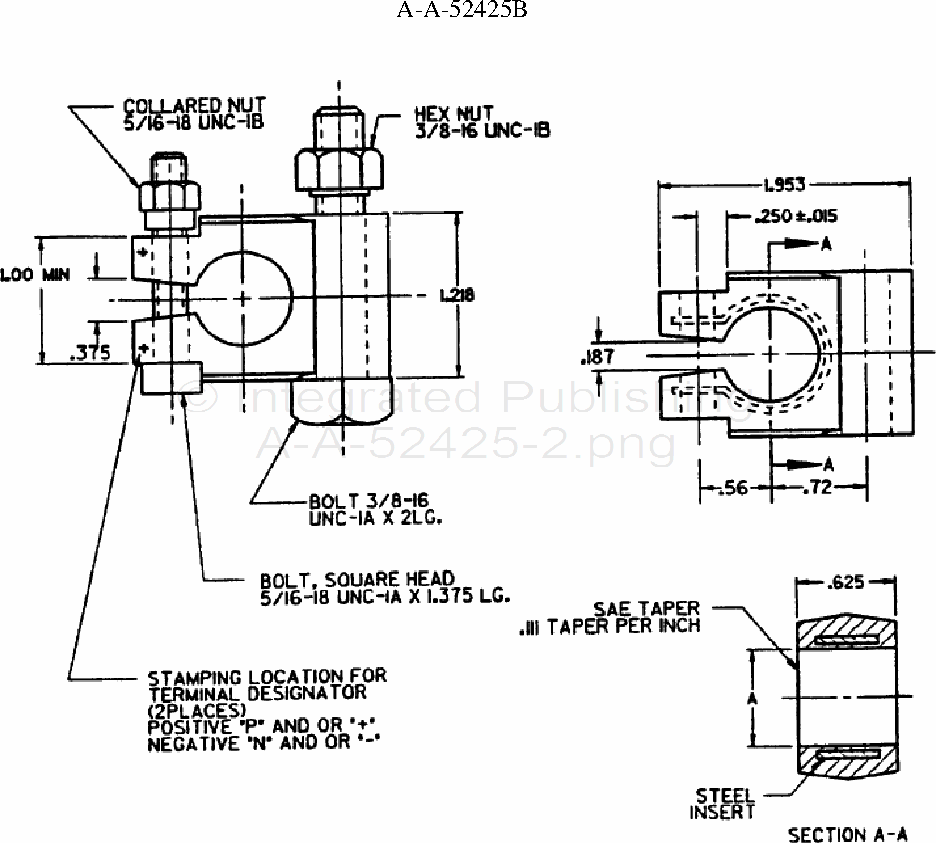

FIGURE 1. Battery terminal adapter configuration.
3.1.2 Insert. The insert used in the terminal adapter body shall be made of low carbon steel having minimum properties of 30 000 pounds per square inch (psi) tensile strength, 20% elongation, 0.05 inches (in.) thick.
