MS35436 Terminal, Lug, Solder Type, Copper Stamping, Insulation Grip, One Hole

Pages 1 - 2 - 3 - 4 - 5


MS35436C


D


C                                 A


F


B


E

H                                                                              Optional body and grip design.

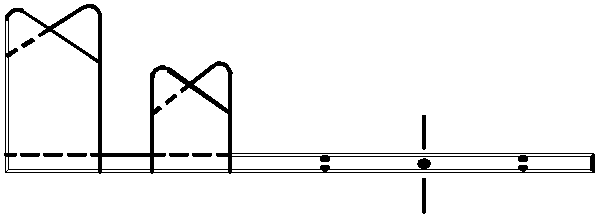

FIGURE 2.  Terminal dimensions for -30 through -43.


TABLE II.  Dash numbers and dimensions for -30 through -43.


Dash no.

Wire size AWG1 nominal

Stud size

A


B


C


D


E


F


H


Min.


Max.

30

10


6


0.141


0.153

1/8

9/32

21/32

7/32

21/64

0.032

31


8


5/32


11/32


1


9/32


15/32


0.025

32

8

0.167

0.179

33

10

0.193

0.205

34

3/8

0.383

0.410

11/16

1 7/32

35


6

6

0.141

0.153


3/16


1/2


1 3/32


1/4


19/32


0.032

36

8

0.167

0.179

37

10

0.193

0.205

38

1/4

0.258

0.285

39


4

6

0.141

0.153


7/32


1/2


1 3/32


11/32


19/32


0.040

40

8

0.167

0.179

41

10

0.193

0.205

42

12

0.221

0.236

43

1/4

0.258

0.285

1American Wire Gauge.


3
