INCH-POUND
MS35431H
15 December 2003
SUPERSEDING MS35431G
16 February 1987
DETAIL SPECIFICATION SHEET
TERMINAL, LUG, SOLDER TYPE, COPPER STAMPING, ONE HOLE, FLAT
Inactive for new design after 27 October 1998.
This specification sheet is approved for use by all departments and agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-15659.
D
.018 E
± .003
C
.094 R
FIGURE 2. Terminal dimensions for -9 (See note 4).
A B

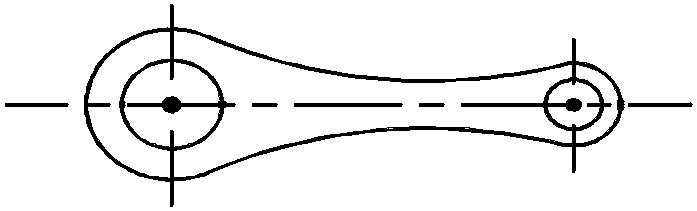

FIGURE 1. Terminal dimensions.
FIGURE 3. Optional body design.
AMSC N/A FSC 5940
