MIL-DTL-24558-27 Terminal Box, Connection, Submersible \(15-Foot\), 500 Volts, Three-Phase, Symbol No. 573.1, Twelve Branch Terminals For Four 3-Conductor 40 Mcm Cables, Six Main Bus Terminals For Two 3-Conductor 75 Mcm Cables

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-DTL-24558/27C

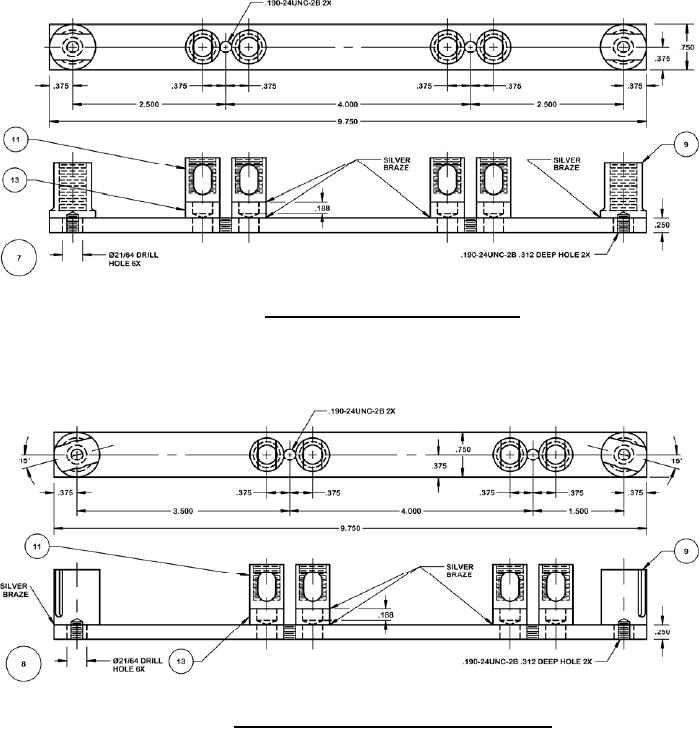

FIGURE 6. Terminal bus assembly - phase "B".
FIGURE 7. Terminal bus assembly - phase "A" and "C".
