MIL-DTL-24558/14B
6. Weight. The weight of the connection box shall not exceed 44.5 pounds.
7. Maximum number of wires. The maximum number of wires (including spares) shall
not exceed three times the number of terminals. The maximum number of wires to be connected
to a single terminal shall not exceed three.
QUALITY ASSURANCE: First article inspection and quality conformance inspection shall be
as specified in MIL-DTL-24558.
NOTES:
1. Drawing. The terminal box specified by this specification sheet was formerly
covered on NAVSHIPS drawing no. 9000-S6202-74375.

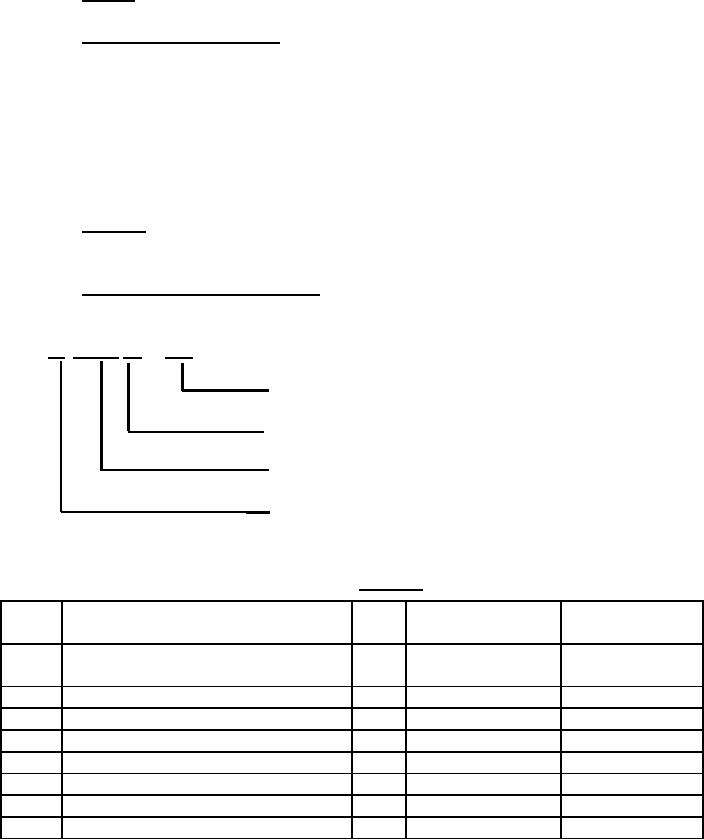

2. Part or identifying number (PIN). The PIN to be used for terminal boxes acquired to
this specification is created as follows:
M 24558/14 - 451
Symbol number
Specification sheet number
General specification number
Denotes military specification
TABLE I. Parts list.
Part number or
Item
Description
Qty
specification
Remarks
1
Enclosure assembly, brass with
1
MIL-E-24142/6
M24142/6-013
type A cover
2
Identification plate
1
MIL-DTL-24558
Figure 6
3
Information plate
1
MIL-DTL-24558
Figure 6
4
Mounting bracket
8
MIL-DTL-24558
Figure 1
5
Terminal board assembly
8
A-A-59125/12
6TB24
6
RDH machine screw 10-24 X 0.875
16
Commercial
Brass
7
Washer, #10 external tooth
16
Commercial
Bronze
8
RDH machine screw 6-32 X 0.250
4
Commercial
Brass
2
