MIL-DTL-24552/1B(SH)

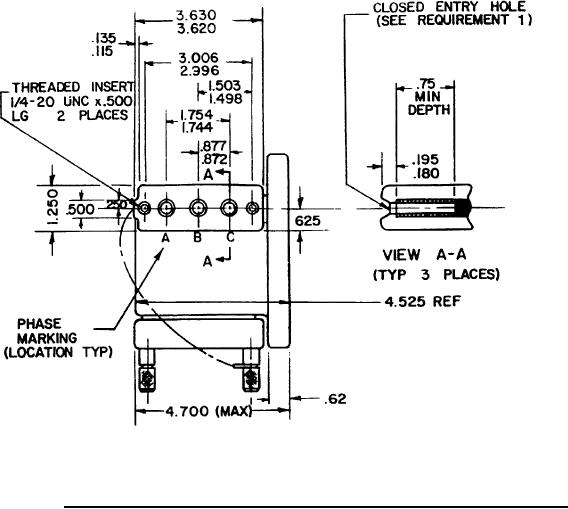

FIGURE 2.
Terminal connector (3 places) (view with covers removed).
NOTES:
1. Dimensions are in inches.
2. Tolerances, unless otherwise specified, are plus or minus 0.01 for two
place decimals and plus or minus 0.005 for three-place decimals. Angular
tolerances are plus or minus 1/2-degree.
3. Mating plug: Military Part No. M24552/4-001 (not furnished).
4. Military Part No. M24552/1-001.
5. Actual shape of mounting face may vary, provided that all required
dimensions are in compliance with the specification.
REQUIREMENTS:
1. The closed entry hole shall not allow an object greater than 0.31-inch
diameter to enter and make contact with receptacle pin.
2. Qualification: Required.
3. First article: Not required.
Preparing activity:
Navy - SH
(Project 5940-1365)
2
