INCH-POUND
MS35436C
15 December 2003
SUPERSEDING MS35436B
10 February 1961
DETAIL SPECIFICATION SHEET
TERMINAL, LUG, SOLDER TYPE,
COPPER STAMPING, INSULATION GRIP, ONE HOLE
Inactive for new design after 15 December 2003
This specification sheet is approved for use by all departments and agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of MIL-DTL-15659 listed in that issue of the Department of Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.
D A
B
C
B F B
E
H Optional body and grip designs.

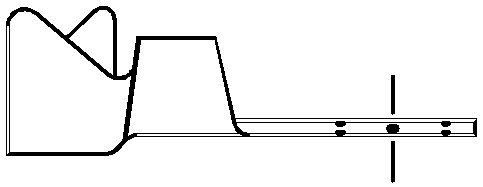

FIGURE 1. Terminal dimensions for -1 through -29.
AMSC N/A FSC 5940
